UTL Solar PCU

Description :

• DSP based design Pure Sine wave, Built in MPPT charge controller
• Thermal Protection
• Maximum Preference to Solar Power
• Ethernet based monitoring
• Noiseless in Operation
• Robust Design – 20 years Product life
• Configurable Priority
  • Solar/Battery/Grid
  • Solar/Grid/Battery
• AC and DC Parameter Configurable from LCD
• AC-Output Voltage
• DC- Charging Voltage Battery Charging Current, Battery Low Cut/High Cut.
• High Surge Capability (up to 300%) for starting heavy load
• High Efficiency & High Reliability
• LED Indication – UPS ON, Mains Charging, Overload, Output High/Low, Battery High/Low, Bypass, SPVCG ON, SPV High/Low, CHG. OVERHEAT, AC Input High/Low R,Y,B, fault
• LCD (20*4) Display – Input Voltage & Freq. R,Y,B, Output Voltage, Freq. & Load%, Battery Voltage, Charging Current, Solar Voltage, Solar Current, Solar Watt, Working Status
• Protections – Output Overvoltage/Under voltage, Overload, Output Short-circuit, Battery Overvoltage/ under voltage, SPV Under Voltage/ Over Voltage, Input Under Voltage/Over Voltage

Description :

• DSP based design Pure Sine Wave, Built in MPPT charge controller.
• Maximum preference to Solar Power
• USB / RS485 based monitoring with 31 days data storage, DC and AC energy meter.
• Grid Interactive.
• Robust design-20 yrs product life
• High Efficiency and High Reliability
• Thermal Protection
• Fan ON/OFF – Temp Based
• Available from 10kVA to 20kVA
• AC and DC Parameter configurable from LCD.
• AC – Output Voltage
• Battery Charging Voltage (SPV & GRID)
• Battery Charging Current (SPV & GRID), Battery Low Cut
• Grid Charging, IT Load & Operating Mode – Enable/Disable by LCD.

Description :

• Inbuilt in rMPPT charge controller (30% more efficient).
• Maximum preference to Solar Power.
• GSM-based remote monitoring (Optional).
• Reverse AC Voltage Protection.
• User friendly & Easily accessible LCD Display with all AC & DC Parameter Configurable by Display Switches & Digital LCD (20X4).
• User Friendly Control :- Output Voltage, Chg. Voltage – SPV/Grid, Chg. Current – SPV/Grid, Grid Reconnect, Batt. Low.
• Priority-based working modes – Smart/PCU/Hybrid (for saving energy & money).
• Grid Charging, IT Load – Enable/Disable by LCD.

Description:

• Alfa+ Solar PCU 10kVA/120V that is mainly used in Hospitals, schools, industries petrol pumps, banks and also in home. It continuously monitor battery and solar voltage as well as grid and output voltage with their current.
• UTL rMPPT Solar PCU will generate up to 30% more electricity and also will show it Everyday till 31 March 2025.
• PCU (Power Conditioning Unit) is an integrated unit that consists of a grid charger, inverter, MPPT Solar Charger. It continuously monitors Battery and Solar voltage as well as Grid and Output voltage with their currents. MPPT based Solar charger extracts the maximum power from the solar panels whereby it increases the efficiency of the system. MPPT charger has multistage charging which maintains the battery charging voltage such that it increases the lifespan of the battery.
• Alfa+ Solar PCU 10kVA/120V is a Model of Power Conditioning Unit (PCU) which uses Solar  (primary) and  Grid (secondary), to charge the batteries. Since the usage of power from the grid is secondary, grid power is only used when solar energy is not present and the battery voltage level reduces to 11.5V/Battery (Default 11.5V, Configurable).
• Grid power is also needed when solar power generation is less and the battery voltage is reduced to 11.5V/Battery (Default 11.5V, Configurable)
• Battery selection mode
• Operating Mode Selection
• LCD display with Energy Meter and Data Logging (optional)
• Pure sine wave
• User-configurable by LCD
• Battery selection mode
• In UTL’s Alfa PCU you have a great feature that is battery selection mode by this we can select any type of battery as per requirement i.e Flat plate/Tubular/SMF/Lead-acid Battery and can set charging voltage and charging current as per requirement.
• Operating Mode Selection
• PCU Mode – Priority Solar →Battery → Grid
• Smart Mode -Priority Solar → Grid → Battery
• Hybrid Mode – Priority for load Grid →Solar →Battery, Priority for battery charging    Solar → Grid
• LCD display with Energy Meter and Data Logging (optional)
• UTL PCU is also available with LCD. This is an optional feature that can be availed by the customer for the better user interface. When the customer opts for this feature, an Energy Meter and Data Logging facilities are also provided to the customer, which help the user to access information about the present and past status of the PCU functionality. In this way, the user can easily track the past records of the unit and thus he/she can have an idea about what needs to be done for better results.
• Pure sine wave
• The output of the UTL’s Alfa PCU is a pure sine wave. and it operates your appliances friendly.
• User-configurable by LCDUser-friendly calibration settings:-
• You can change the below settings of Alfa PCU by itself like,
• Configurable Grid Reconnect setting
• Configurable Battery Low cut setting
• Configurable Grid low cut/High cut setting
• User-friendly operational settings:-
• No-load shut down Enable/Disable.
• Grid charger Enable/Disable.
• IT Load Enable/Disable.
• Input AC source Grid/Genset.

Description:

• DSPic-based Pure Sine Wave Design.
• Inbuilt in rMPPT charge controller (30% more efficient).
• Maximum preference to Solar Power.
• GSM-based remote monitoring (Optional).
• Reverse AC Voltage Protection.
• User friendly & Easily accessible LCD Display with allC & DC Parameter Configurable by Display Switches & Digital LCD (20X4).
• User Friendly Control :- Output Voltage, Chg. Voltage – SPV/Grid, Chg. Current – SPV/Grid, Grid Reconnect, Batt. Low.
• Priority-based working modes – Smart/PCU/Hybrid (for saving energy & money).
• Grid Charging, IT Load – Enable/Disable by LCD.

Description:

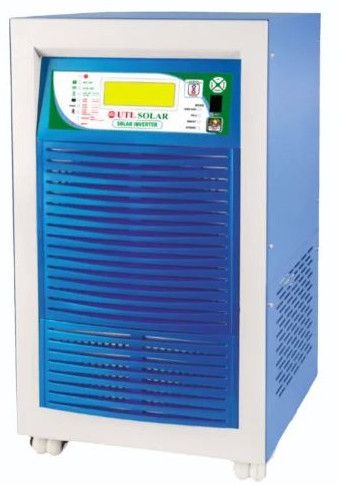

• UTL hybrid Solar inverter has only one inverter named Sigma Pro Grid Export Solar PCU. It is solar power conditioning unit which is a single phase output solar inverter system. It works as a Bi-directional inverter which means power will be exported into the grid or power will be imported from the Grid.

The Sigma Pro PCU work in two operates condition:

1. Stand-alone
2. Grid Interactive

• Stand-alone: Solar Inverter operates from solar battery and produces AC output. The solar battery charged by solar power in first priority and from grid second priority.
• Grid Interactive: Solar inverter operates from solar battery and produces AC output and also operates in parallel with the grid supply. Any excess solar power will be exported into the grid. Whenever sufficient solar power is not available to run the load, the required power is shared from the grid. The maximum power feed into the grid is depends on the system rating.
• Sigma Pro hybrid solar inverter is a single-phase, Bi-directional solar inverter with high efficiency that provides you uninterrupted power support during nights and power outages. We offer a complete range of Sigma Pro hybrid solar inverter from 1kVA to 15kVA power rating that meets all your requirements. Install Sigma Pro hybrid solar PCU 10kVA/120V and experience the green energy & save on electricity charges.

Description:

• UTL hybrid Solar inverter has only one inverter named Sigma Pro Grid Export Solar PCU. It is solar power conditioning unit which is a single phase output solar inverter system. It works as a Bi-directional inverter which means power will be exported into the grid or power will be imported from the Grid.

• The Sigma Pro PCU work in two operates condition:

• Stand-alone

• Grid Interactive

• Stand-alone: Solar Inverter operates from solar battery and produces AC output. The solar battery charged by solar power in first priority and from grid second priority.

• Grid Interactive: Solar inverter operates from solar battery and produces AC output and also operates in parallel with the grid supply. Any excess solar power will be exported into the grid. Whenever sufficient solar power is not available to run the load, the required power is shared from the grid. The maximum power feed into the grid is depends on the system rating.

• Sigma Pro hybrid solar inverter is a single-phase, Bi-directional solar inverter with high efficiency that provides you uninterrupted power support during nights and power outages. We offer a complete range of Sigma Pro hybrid solar inverter from 1kVA to 15kVA power rating that meets all your requirements. Install Sigma Pro hybrid solar PCU 5kVA/48V and experience the green energy & save on electricity charges.

Description:

• UTL hybrid Solar inverter has only one inverter named Sigma Pro Grid Export Solar PCU. It is solar power conditioning unit which is a single phase output solar inverter system. It works as a Bi-directional inverter which means power will be exported into the grid or power will be imported from the Grid.

• The Sigma Pro PCU work in two operates condition:

• Stand-alone

• Grid Interactive

• Stand-alone: Solar Inverter operates from solar battery and produces AC output. The solar battery charged by solar power in first priority and from grid second priority.

• Grid Interactive: Solar inverter operates from solar battery and produces AC output and also operates in parallel with the grid supply. Any excess solar power will be exported into the grid. Whenever sufficient solar power is not available to run the load, the required power is shared from the grid. The maximum power feed into the grid is depends on the system rating.

• Sigma Pro hybrid solar inverter is a single-phase, Bi-directional solar inverter with high efficiency that provides you uninterrupted power support during nights and power outages. We offer a complete range of Sigma Pro hybrid solar inverter from 1kVA to 15kVA power rating that meets all your requirements. Install Sigma Pro hybrid solar PCU 5kVA/48V and experience the green energy & save on electricity charges.

Description :

• UTL hybrid Solar inverter has only one inverter named Sigma Pro Grid Export Solar PCU. It is solar power conditioning unit which is a single phase output solar inverter system. It works as a Bi-directional inverter which means power will be exported into the grid or power will be imported from the Grid.

The Sigma Pro PCU work in two operates condition:

1. Stand-alone
2. Grid Interactive

• Stand-alone: Solar Inverter operates from solar battery and produces AC output. The solar battery charged by solar power in first priority and from grid second priority.

• Grid Interactive: Solar inverter operates from solar battery and produces AC output and also operates in parallel with the grid supply. Any excess solar power will be exported into the grid. Whenever sufficient solar power is not available to run the load, the required power is shared from the grid. The maximum power feed into the grid is depends on the system rating.

• Sigma Pro hybrid solar inverter is a single-phase, Bi-directional solar inverter with high efficiency that provides you uninterrupted power support during nights and power outages. We offer a complete range of Sigma Pro hybrid solar inverter from 1kVA to 15kVA power rating that meets all your requirements. Install Sigma+ hybrid solar PCU 8kVA/96V and experience the green energy & save on electricity charges.
